| Electromagnetic locking safety door lock switch ?Built-in 4 groups of contacts, electromagnetic locking or unlocking can be selected. ?The locking force is 2000N. ?Metal switch head, which can be adjusted in four directions. ?Four kinds of pins are available. |
| Ordering information |  |
| Switch model | Contact configuration | Catheter opening/connector | type |
D3SL-S | 2NC/1NC+2NC/1NO | M20 water joint | Power-on unlocking |
D3SL-D | 2NC/1NC+2NC/1NO | M20 water joint | Power failure unlocking |
| BS03 | metal | / | Ordinary handle |
| BS04 | metal | / | Key handle |
Description: | D3SLIt is recommended to use it with handles. | ||
| Locking tongue type |
Straight-in mounting type Z | Long l installation type ZL | Wide mounting type K | Short l-shaped mounting type KL |
|
|
|  |
Safety latch/handle

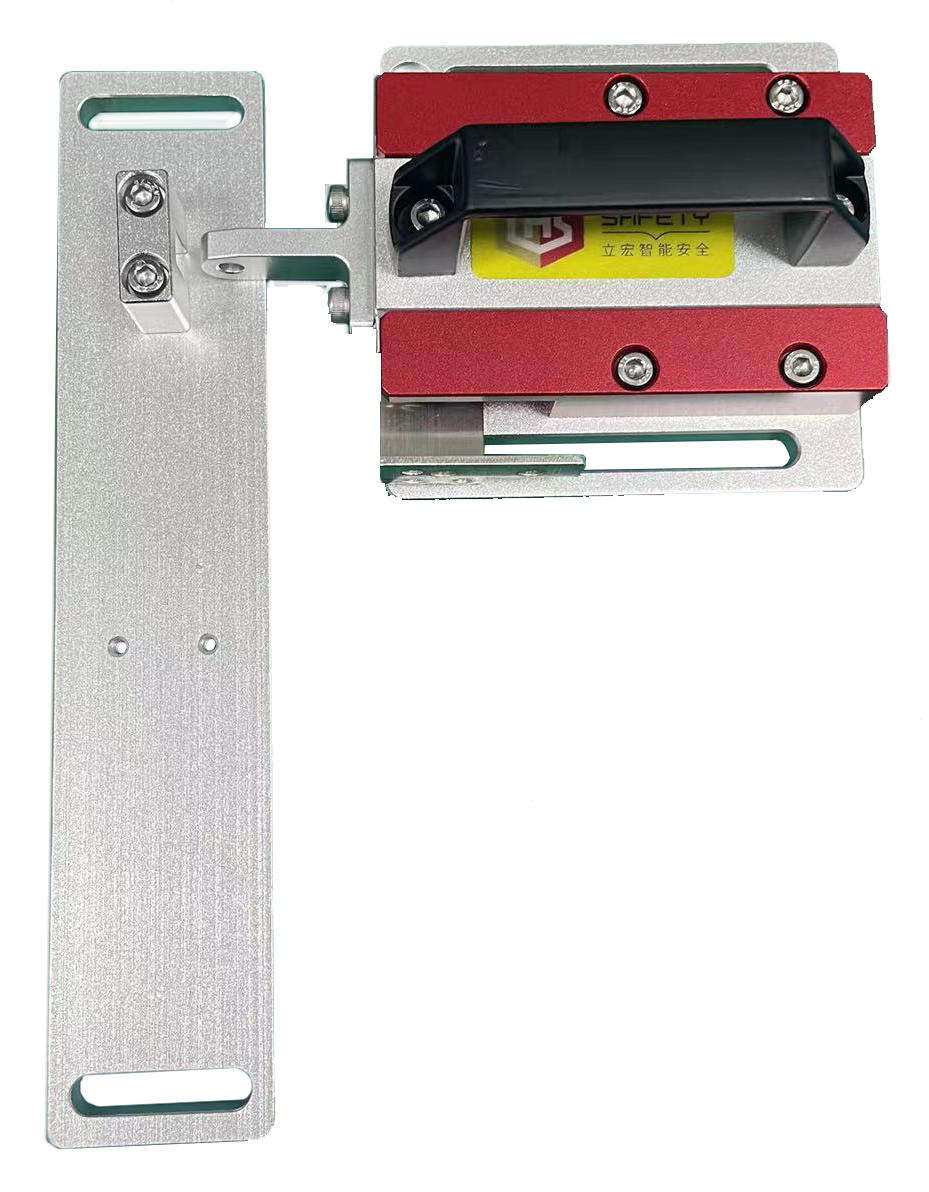

Safety latch BS02 | Safety latch BS03 | Safety latch BS04 | |||
 |
|
| |||
 |  |  |
| contact rating |
rated voltage | 30V | 250V | ||
rated current | AC | Resistive load（AC-12） | — | 4A |
Inductive load（AC-15） | — | 2A | ||
DC | Resistive load（DC-12） | 2A | 0.8A | |
Inductive load（DC-13） | 1A | 0.4A | ||
| performance |
| security certificate | Mechanical reliability | B10d 2.5x106 runs IS013849-1 to PLe under 100mA load, depending on the system architecture EN62061 to SIL3, depending on the system architecture. |
| Safety data | Use 8 cycles/hour/24 hours /365 days MTTFD every year for 356 years. | |
| the protection grades | IP67 | |
Life span *1 | machinery | Not less than 1 million times |
Not less than 100,000 times (AC-12 250V 4A) | ||
electric | ||
Not less than 1 million times (24V AC/DC 100mA) | ||
Operation progress | 0.5m/s | |
Operating frequency | Maximum 30 times /min | |
Forced breaking force *2 | Minimum 60N | |
Forced disconnection stroke *2 | Minimum 10mm | |
Minimum applicable load | 24V DC 4mA | |
Pollution degree (operating environment) | Pollution level 3 | |
Electric shock capacity | 24V(DC13 4A)/230V (DC15 4A) | |
There is an electromagnetic coil | Rated voltage: DC 24V Rated current: 0.31A Insulation grade: Class B. | |
ambient temperature | -10-40℃ | |
| Model and contact composition |
model | Contact composition (Door opening and closing detection switch+lock monitoring switch) | Contact form | Action mode |
D3SL | 2NC/1NC+2NC/ 1NO |   |  |
| Electromagnetic coil |
rated voltage | DC24V+10% |
rated current | 0.4A |
Insulation grade | b grade |
| In the schematic diagram of power-on unlocking |
move work shape form | State 1 | condition 2 | condition 3 | Manual unlocking status |
Closed state Equipment startup Coil deenergization | Closed state The device is not bootable. Coil energization | Open door state The device is not bootable. Coil deenergization | Open door state Equipment stop Coil deenergization | |
Protective door state diagram |  |  |  | |
Electric shock state diagram |
|
|  |  |
| Schematic diagram of power-off unlocking |
move work shape form | State 1 | condition 2 | condition 3 | Manual unlocking status |
Closed state The device is not bootable. Coil deenergization | Closed state Equipment startup Coil deenergization | Open door state The device is not bootable. Coil deenergization | Open door state Equipment stop Coil deenergization | |
Protective door state diagram |  |  |  | |
Electric shock state diagram |  |  |  | |
| Internal structure and wiring diagram |
 |  |  |
| Shape and installation dimensions |
Shape and installation dimensions |
 |

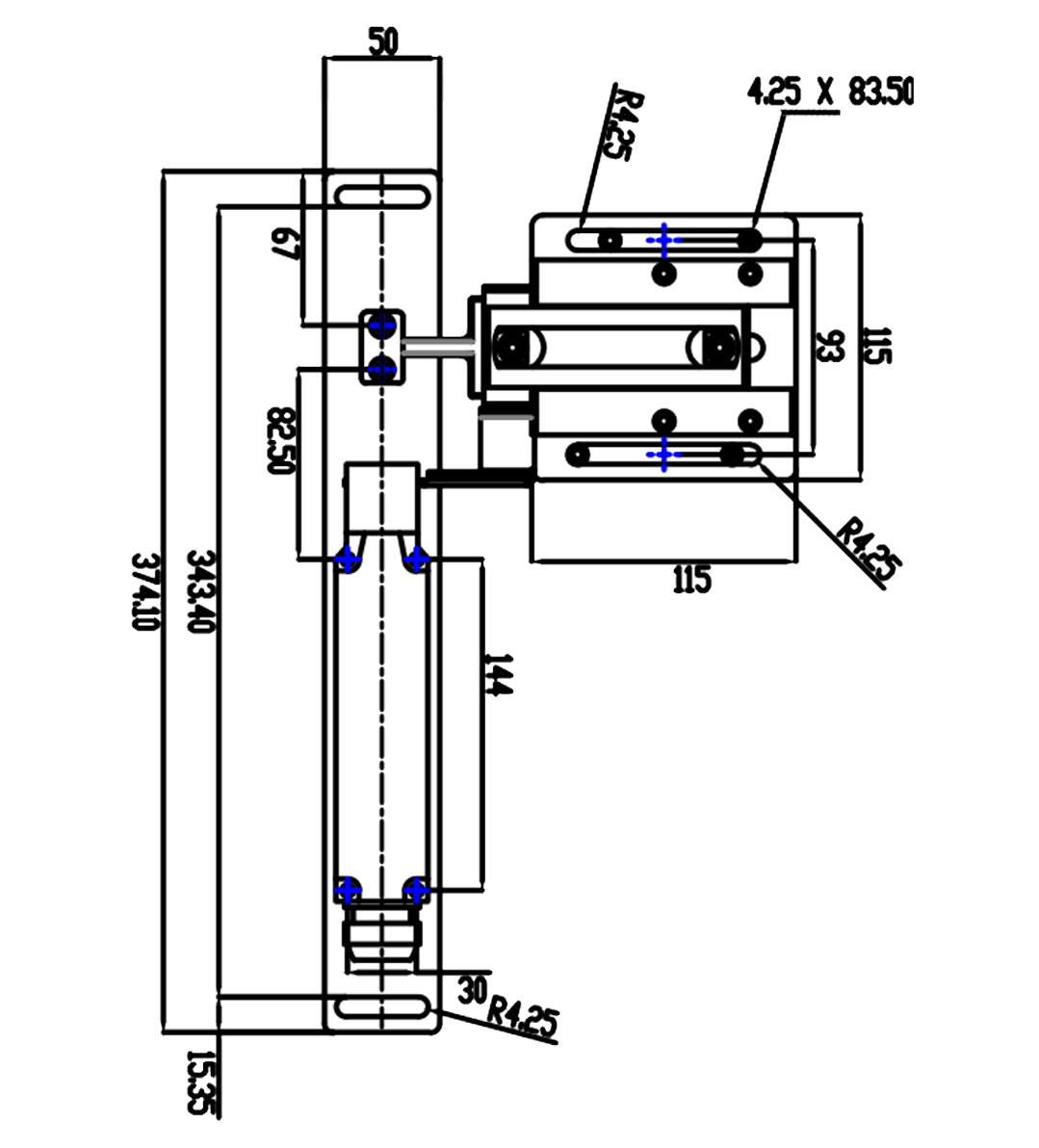

| Shape and installation dimensions |
Installation direction | Head change direction | The installation direction of the safety door switch head can be changed to adapt to more installation environments. The position of the shell remains unchanged, only the direction of the head can be changed. |
 |  |
| Auxiliary unlocking instructions |
 | When the safety door switch is working normally, the arrow points to the "locked" sign, and the anti-rotation screw must be in a tight state; In special circumstances such as power failure or malfunction of the equipment, if you want to open the protective door, you should first loosen the screw next to the arrow knob; Then use the tool to point the arrow knob to the "unlock" sign. At this time, the safety door switch is unlocked, the bolt can be pulled out, and the protective door can be opened. |
▊ | Safety interlock switch selection table |
▲Safety door lock switch
| Electromagnetic door lock switch
| Electromagnetic door lock switch
| AI intelligent security door lock
| ||
select type mark accurate | model | D3-B2S | D3SL | D3NL | AI box-F |
Contact setting | 2NC/1NO | 2NC/1NC+2NC/1NO | 4NC/2NO | 2NC/1NC+2NC/1NO | |
shell | ABS plastic | ABS plastic | ABS plastic | metal | |
Head mounting | Four directions | Four directions | Four directions | Left and right direction | |
Locking force | 50N | 2000N | 2000N | 2000N | |
the protection grades | IP67 | IP67 | IP67 | IP67 | |
characteristic | The operating key is adjustable. | ? | ? | ? | |
24VDC electromagnetic locking/ Mechanical unlocking | ? | ? | ? | ||
Door monitoring | ? | ? | ? | ? | |
security certificate | Safety CErtification ce certification | ? | ? | ? | ? |
▊ | Construct a safety loop according to the number of door locks |
|
|
|
|
